Python Automation for PPMS–VNA and Transport Measurements

Python-based programming to automate measurements with synchronized magnetic field, temperature, and frequency sweeps using PPMS, Agilent PNA 5227A, and Keithley instruments.

⚙️ Project Overview & Motivation

I have developed a Python automation suite for synchronized magnetic-field, temperature and frequency-dependent measurements using:

  • Quantum Design PPMS,
  • Agilent PNA 5227A, and
  • Keithley 6221/2182A instruments.

🧪 The software automates:

  1. FMR (Ferromagnetic Resonance): frequency–field mapping to extract resonance fields, linewidths, and effective damping.
  2. Electrical Transport Option (ETO): Temperature- and field-dependent Hall, and magnetoresistance data collection.
  3. Frequency-vs-field S21 measurements: microwave measurements by synchronizing with VNA

It replaced an expensive commercial packages and saving over $4,000.

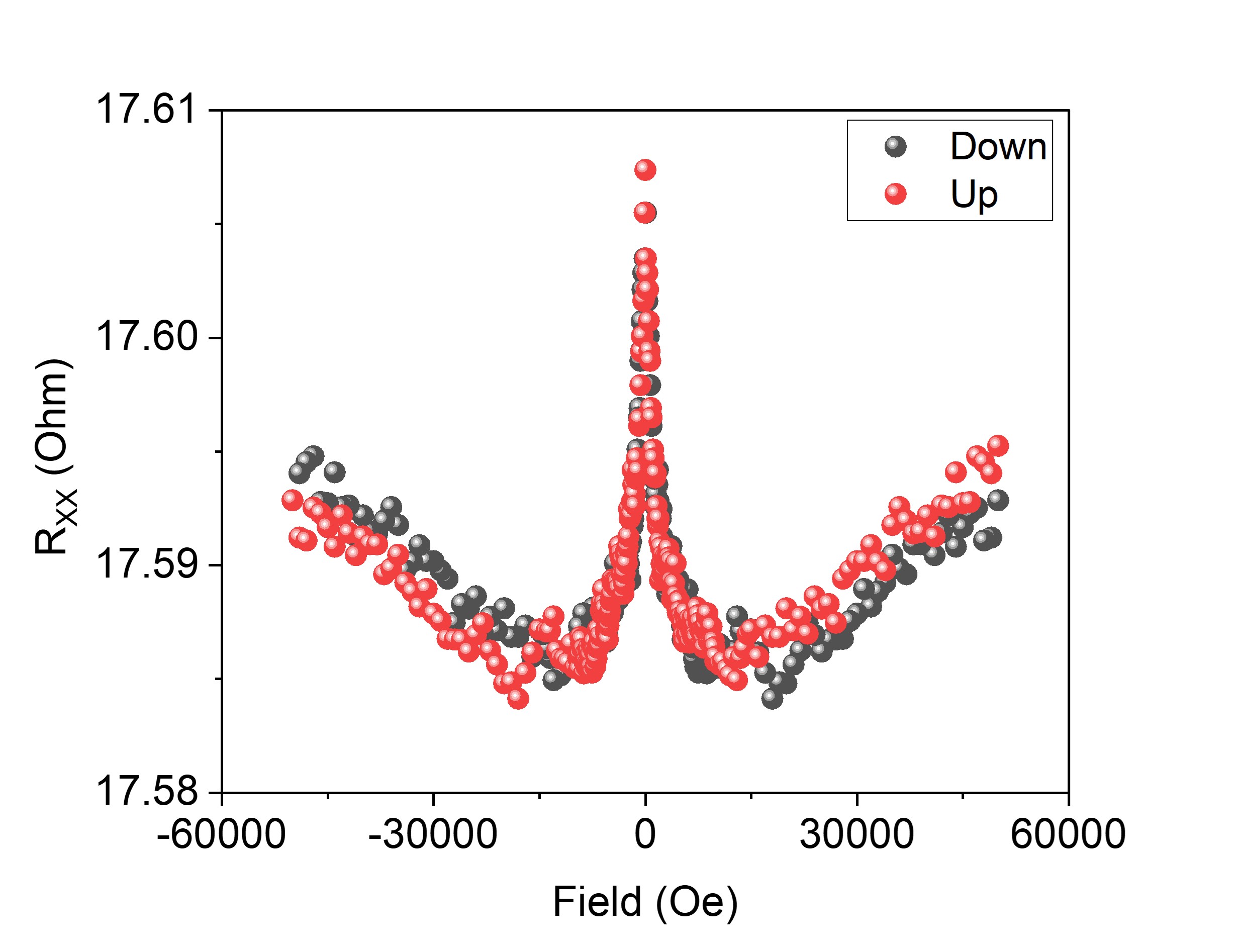

(Left) Automated S21 frequency-field mapping via PPMS–VNA interface. (Right) ETO resistivity and Hall measurement system integrated via Python.

🧩 Technical Implementation

Python QD

  • Language: Python (v3.11)
  • Communication Protocols:
    • GPIB and VISA (via pyvisa)
    • Quantum Design API for PPMS control
  • Supported Instruments:
    • Agilent PNA 5227A (S11, S21 scattering measurements)
    • Keithley 6221 (current source) and 2182A (nanovoltmeter)
    • PPMS DynaCool (field, temperature)
  • Core Libraries: numpy, matplotlib, pandas, pyvisa, scipy
  • Features:
    • Frequency sweep automation with synchronized field ramping
    • Temperature-stabilized measurement loops
    • Multi-scan averaging and noise filtering
    • CSV output for post-processing and plotting
    • Modular GUI-free design for remote execution

💻 Code Access

Full source code and example datasets are available on GitHub:

Repositories include ready-to-use command templates, VISA initialization scripts, and sample measurement logs for PPMS setups.
